■作業
archlinux voyage-mpd デュアルブートのポイントだけ書いて置きます。
(みみず工房さんからの情報でこのデュアルブートはブートローダーgrubを使うと上手くいかないらし
い。)
1. archlinuxインストール
二つに分けたパーテーション
/dev/sda1 にインストールする。
インストール方法は64ビットマシンにmSATAのアダプターを取り付けて
downloadしたイメージをCDに焼いたものからするのが一番簡単です。
インストール後にブートローダーはextlinuxにする。
syslinuxブートローダーからの切り替え→extlinux
# pacman -S syslinux
# mkdir -p /boot/extlinux
# extlinux --install /boot/extlinux
# cp /usr/lib/syslinux/bios/*.c32
/boot/extlinux
# dd bs=440 count=1 conv=notrunc
if=/usr/lib/syslinux/bios/mbr.bin of=/dev/sda
# cp /boot/syslinux/syslinux.cfg
/boot/extlinux/extlinux.conf
/boot/extlinux/extlinux.conf
を編集時にHDの指定をuuidで行うために
コマンドでssdのuuidを確認しておくことが必要
# blkid
/dev/sda1:
UUID="e9a4869d-a024-4de6-a91a-97b4b7e519c6"
TYPE="ext4" PARTUUID="0005ab92-01"
/dev/sda2: LABEL="VOYAGE_FS"
UUID="d8e4b7c7-3691-4404-bc58-c8d31c6f6335"
TYPE="ext2" PARTUUID="0005ab92-02"
# vi /boot/extlinux/extlinux.conf
----------------------------------------------------------
# Config file for Syslinux -
# /boot/syslinux/syslinux.cfg
#
# Comboot modules:
# * menu.c32 - provides a text menu
# * vesamenu.c32 - provides a graphical menu
# * chain.c32 - chainload MBRs, partition boot
sectors, Windows bootloaders
# * hdt.c32 - hardware detection tool
# * reboot.c32 - reboots the system
#
# To Use: Copy the respective files from
/usr/lib/syslinux to /boot/syslinux.
# If /usr and /boot are on the same file
system, symlink the files instead
# of copying them.
#
# If you do not use a menu, a 'boot:' prompt
will be shown and the system
# will boot automatically after 5 seconds.
#
# Please review the wiki:
https://wiki.archlinux.org/index.php/Syslinux
# The wiki provides further configuration
examples
serial 0 115200
#DEFAULT arch
DEFAULT Arch_Linux_3.12.33-rt47
PROMPT 0 # Set to 1 if you always want to
display the boot: prompt
TIMEOUT 50
# You can create syslinux keymaps with the
keytab-lilo tool
#KBDMAP de.ktl
# Menu Configuration
# Either menu.c32 or vesamenu32.c32 must be
copied to /boot/syslinux
UI menu.c32
#UI vesamenu.c32
# Refer to
http://syslinux.zytor.com/wiki/index.php/Doc/menu
MENU TITLE Arch Linux
#MENU BACKGROUND splash.png
MENU COLOR border 30;44 #40ffffff #a0000000
std
MENU COLOR title 1;36;44 #9033ccff #a0000000
std
MENU COLOR sel 7;37;40 #e0ffffff #20ffffff all
MENU COLOR unsel 37;44 #50ffffff #a0000000 std
MENU COLOR help 37;40 #c0ffffff #a0000000 std
MENU COLOR timeout_msg 37;40 #80ffffff
#00000000 std
MENU COLOR timeout 1;37;40 #c0ffffff #00000000
std
MENU COLOR msg07 37;40 #90ffffff #a0000000 std
MENU COLOR tabmsg 31;40 #30ffffff #00000000
std
# boot sections follow
#
# TIP: If you want a 1024x768 framebuffer, add
"vga=773" to your kernel line.
#
#-*
LABEL arch
MENU LABEL Arch Linux
LINUX ../vmlinuz-linux
#APPEND root=/dev/sda3 rw
#6711d855-a94b-4170-a85d-d5a22ff7aac2
APPEND console=ttyS0,115200n8
root=UUID=6711d855-a94b-4170-a85d-d5a22ff7aac2
rw clocksource=hpet
INITRD ../initramfs-linux.img
LABEL archfallback
MENU LABEL Arch Linux Fallback
LINUX ../vmlinuz-linux
#APPEND root=/dev/sda3 rw
APPEND console=ttyS0,115200n8
root=UUID=6711d855-a94b-4170-a85d-d5a22ff7aac2
rw clocksource=hpet
COM32 chain.c32
INITRD ../initramfs-linux-fallback.img
######################################################################################################
LABEL voyage
MENU LABEL voyage Linux 0.10.0
LINUX /vm/boot/vmlinuz-3.14.12-voyage-rt-rt9
APPEND console=ttyS0,115200n8
root=UUID=634b3efb-f960-419d-b7a7-283cf93dceb9
rw
INITRD
/vm/boot/initrd.img-3.14.12-voyage-rt-rt9
##
#KERNEL chain.c32
#UUID="634b3efb-f960-419d-b7a7-283cf93dceb9"
TYPE="ext2" PARTUUID="0001ebd4-02"
######################################################################################################
#LABEL windows
# MENU LABEL Windows
# COM32 chain.c32
# APPEND hd0 1
LABEL hdt
MENU LABEL HDT (Hardware Detection Tool)
COM32 hdt.c32
LABEL reboot
MENU LABEL Reboot
COM32 reboot.c32
LABEL poweroff
MENU LABEL Poweroff
COM32 poweroff.c32
※Syslinux
は設定ファイルと同じパーティションにあるファイルしかロードすることができません。
そのため、Linux の他バージョンを異なるパーティションに置いている (/boot
を使っていない) ときは、
Extlinux を利用する必要がでてきます。
後述しますがこのextlinux.confにvoyage-mpdの起動項目を記述することにな
ります。

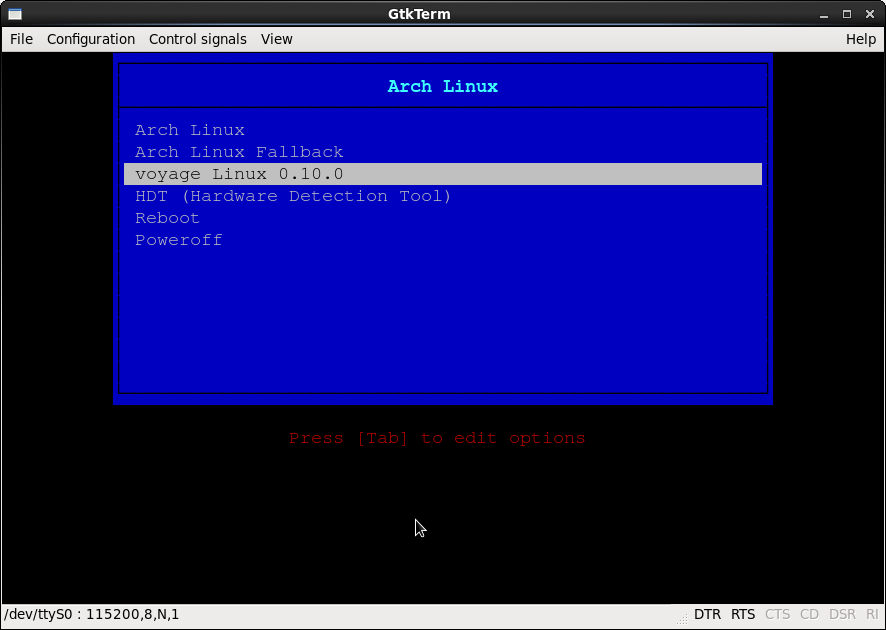

ここまで来たら再起動してみる。メニューが表示出来るようになっているはず
2. voyage-mpdインストール
Archlinuxを起動して
# pacman -S rsync
# mkdir /mnt/cr を実行後に
/root(/dev/sda1)にvoyage-mpdのtarファイルをダウンロードして
/root/usr/local/sbin/voyage.updateを実行してインストールを行
う。
※インストールパーテーションは
/dev/sda2
です。
# wget
http://mirror.voyage.hk/download/voyage-mpd/voyage-mpd-0.10.0.tar.xz
# xz -dv voyage-mpd-0.10.0.tar.xz
# tar -xvf voyage-mpd-0.10.0.tar
# cd voyage-mpd-0.10.0
本体インストールは省略...
インストールは/dev/sda2の中なのでbostrapは2になる。
ブートローダーインストールは最初grubで良い。
※一度目の再起動時はvoyage-mpdが起動します。
※最初のvoyage-mpdの起動時に作業を行う
その時にextlinuxで起動出来る様にブートローダーを入れ替える。
ここで間違えると二度と起動できなくなるので注意
# wget
ftp://ftp.kernel.org/pub/linux/utils/boot/syslinux/syslinux-6.03.tar.gz
# tar -zxvf syslinux-6.03.tar.gz
# cp ./syslinux-6.03/bios/mbr/mbr.bin /boot
# cp ./syslinux-6.03/bios/extlinux/extlinux
/boot
# cd /boot
# vi /boot/extlinux.conf
--------------------------------------------------------------
serial 0 115200
DEFAULT voyage
#display /boot/voyage.txt
prompt 1
timeout 10
# voyage image
LABEL voyage
KERNEL /boot/vmlinuz-3.10.11-voyage
APPEND initrd=/boot/initrd.img-3.10.11-voyage
console=ttyS0,115200 root=/dev/sdb1 ro
--------------------------------------------------------------
mbrを書き込みます。
# ./extlinux -i /boot
# cat mbr.bin >/dev/sda
ここでrebootしてarchlinuxで起動する。
# cd
# mkdir TEST
# mount /dev/sda2 TEST
# cd /
# mkdir vm
# cd vm
# ls -l /root/TEST/boot
-rw-r--r-- 1 root root 1398460 4月 17 16:25
System.map-3.14.12-voyage-rt-rt9
-rw-r--r-- 1 root root 113162 4月 30 01:55
-rw-r--r-- 1 root root 122430 4月 17 16:06
config-3.14.12-voyage-rt-rt9
-rw-r--r-- 1 root root 22560 4月 30 01:55
-rw-r--r-- 1 root root 22466 4月 30 01:55
-rw-r--r-- 1 root root 31628 4月 30 01:55
-rwxr-xr-x 1 root root 221776 5月 11 14:48
extlinux
drwxr-xr-x 2 root root 4096 5月 11 14:43 grub
-rw-r--r-- 1 root root 5077098 4月 30 01:57
initrd.img-3.14.12-voyage-rt-rt9
-rw-r--r-- 1 root root 22578 4月 30 01:55
-r--r--r-- 1 root root 122308 5月 11 14:48
ldlinux.c32
-r--r--r-- 1 root root 69632 5月 11 14:48
ldlinux.sys
-rw-r--r-- 1 root root 440 5月 11 14:48 mbr.bin
-rw-r--r-- 1 root root 6878 4月 30 01:55
-rw-r--r-- 1 root root 33192 4月 30 01:55
-rw-r--r-- 1 root root 2131872 4月 17 16:25
vmlinuz-3.14.12-voyage-rt-rt9
--------------------------------------------------------------
>

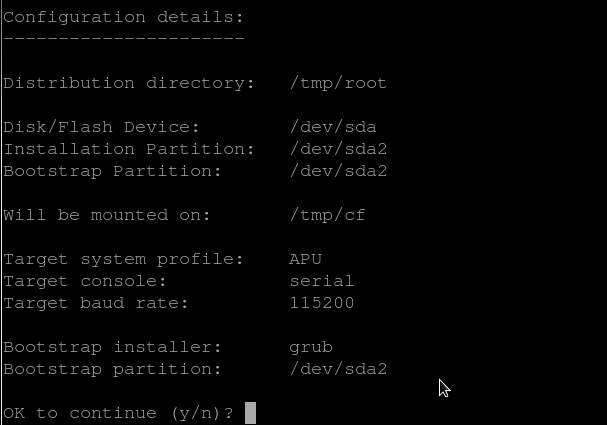

参考:インストール時のconfig
/tmp/rootだとエラーになるときは/root/voyage-0.10-0でOK
※この/vmの謎が解けるまで時間がかかった。
要はgrub様に違うパーテーションを起動出来ないので
/vmに起動時のイメージをコピーする。
※syslinux では設定ファイルと同じパーティションにあるファイルしか
ロードすることができません。
そのため、Linux の他バージョンを異なるパーティションに置いている
(/boot を使っていない) 時は extlinux が必要です。
